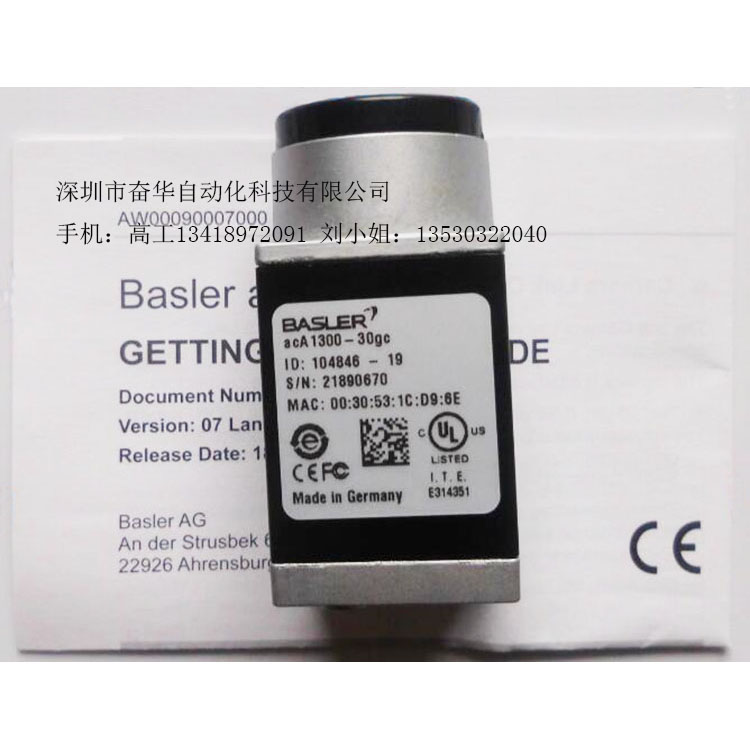

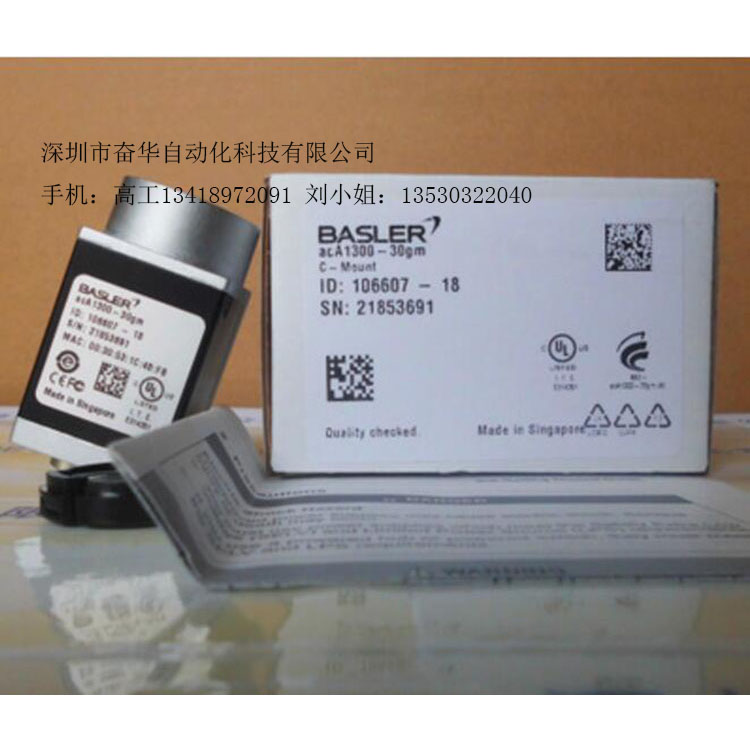

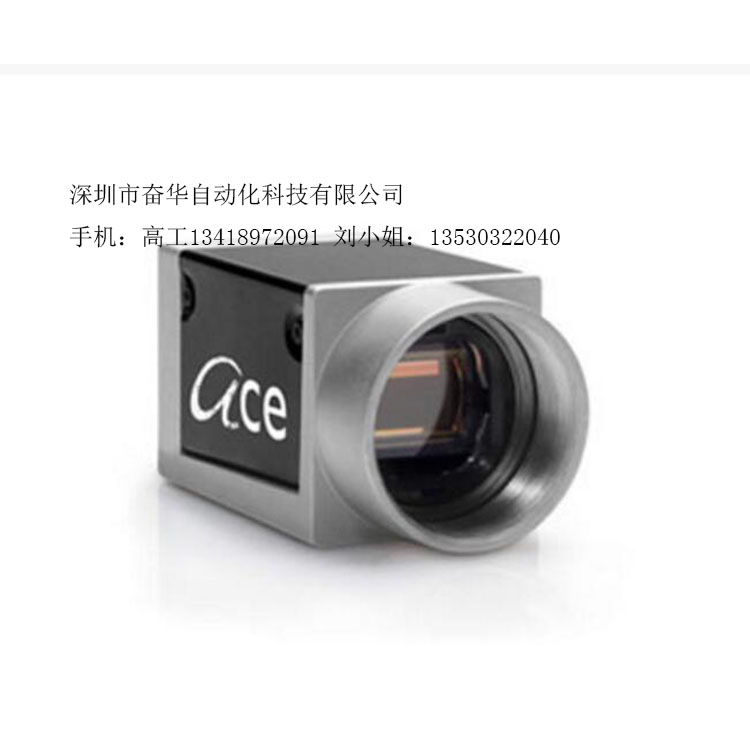

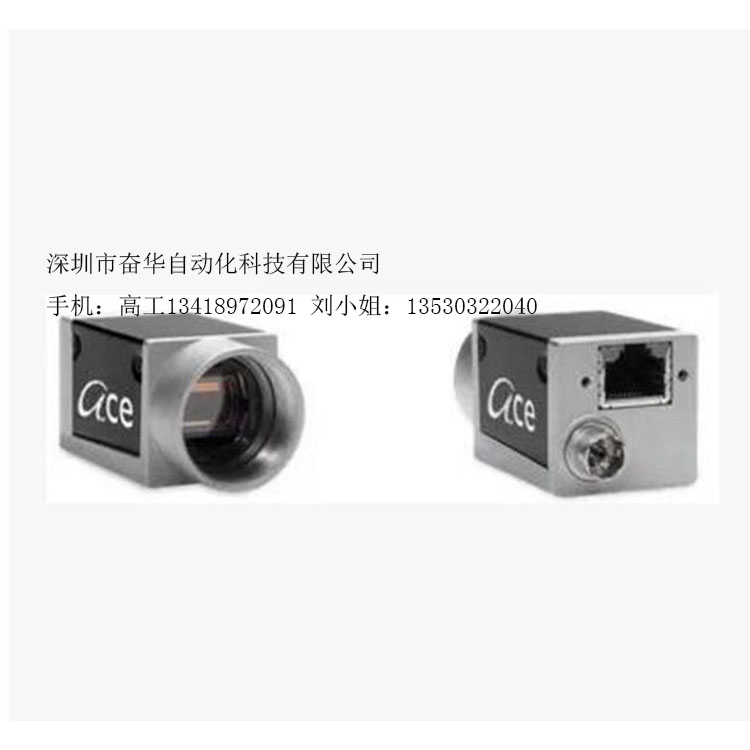

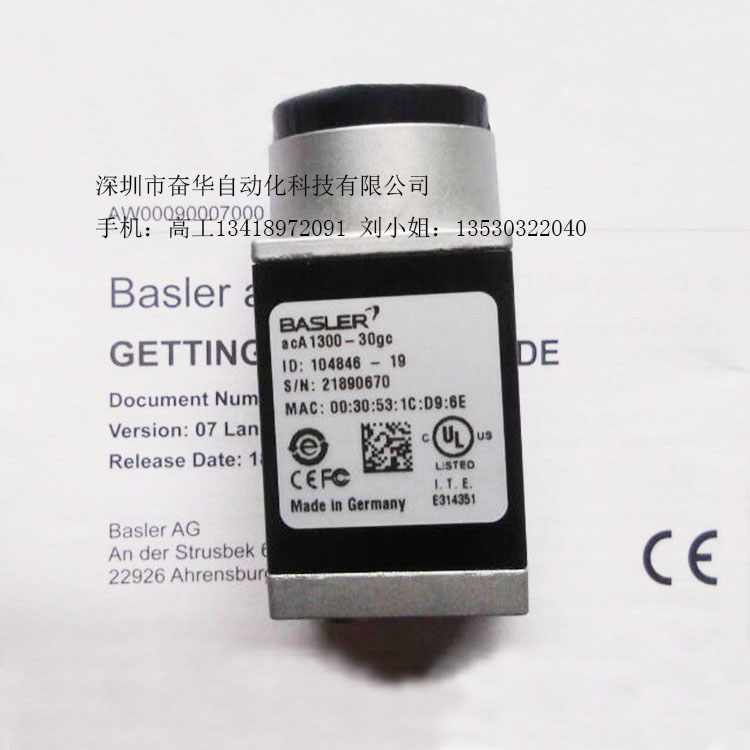

basler ACA1300-30gm

所属分类：BASLER
型号：basler ACA1300-30gm
点击次数：
发布日期：2018/09/28
在线询价

详细介绍

德国 Basler acA1300-30gm/gc 130万像素GIGE千兆网CCD工业相机德国大品牌Basler，130万像素1294&amp;times;964，SONY ICX445 CCD，逐行扫描全局快门，GIGE接口，1/3'靶面，3.45um像素尺寸，C卡口，最高帧率30FPS，支持硬件

General Specifications

Specification	acA1300-30gm
Resolution (H x V Pixels)	1296 x 966
Sensor Type	Sony ICX445AL Progressive scan CCD Global shutter
Optical Size	1/3"
Effective Sensor Diagonal	6.1 mm
Pixel Size (H x V)	3.75 μm x 3.75 μm
Frame Rate (at Default Settings)	30 fps
Product Line	ace classic
Mono / Color	Mono
Image Data Interface	Fast Ethernet (100 Mbit/s) Gigabit Ethernet (1000 Mbit/s)
Pixel Formats	See Pixel Format.
Synchronization	Via hardware trigger Via software trigger Via free run
Exposure Time Control	Via hardware trigger or programmable via the camera API
Camera Power Requirements	Power over Ethernet (PoE) 802.3af compliant supplied via Ethernet connector 12 VDC supplied via I/O connector
Camera Power Requirements	≈2.7 W when using Power over Ethernet ≈2.2 W @ 12 VDC when supplied via I/O connector
I/O Lines	1 opto-coupled input line 1 opto-coupled output line
Lens Mount	C-mount, CS-mount

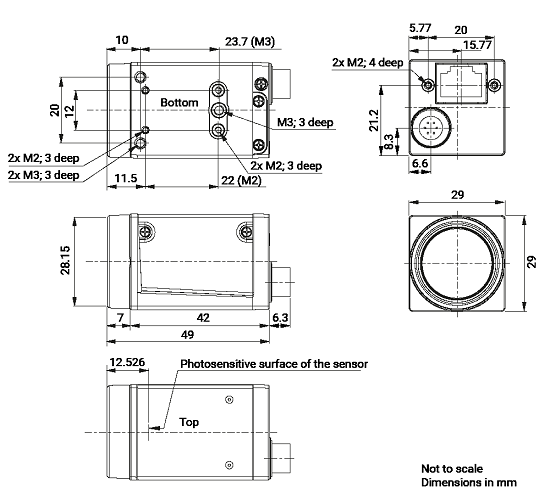

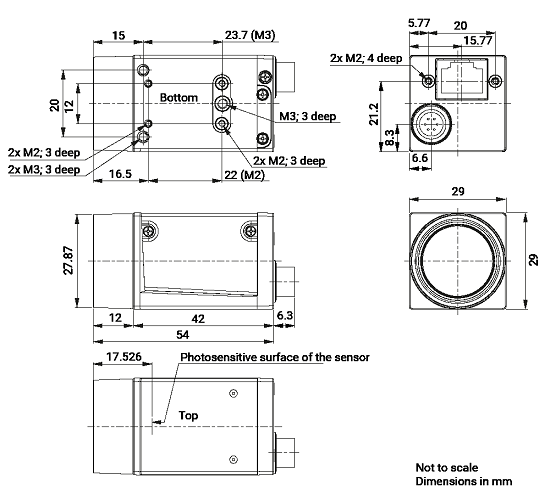

Size (L x W x H)	42.0 mm x 29 mm x 29 mm (without lens mount or connectors) 60.3 mm x 29 mm x 29 mm (with lens mount and connectors)
Weight	<90 g
Conformity	CE (includes RoHS), UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH The EU Declaration of Conformity is available on the Basler website
Software	Basler pylon Camera Software Suite (version 4.0 or higher) Available for Windows, Linux x86, Linux ARM, and OS X
Accessories	Cables for your camera model Lenses for your camera model Additional accessories for your camera model
