Basler acA1300-22gc

您的当前位置: 首 页 >> 产品中心 >> BASLER

Basler acA1300-22gc

  • 所属分类:BASLER

  • 型号:Basler acA1300-22gc
  • 点击次数:
  • 发布日期:2018/09/28
  • 在线询价
详细介绍

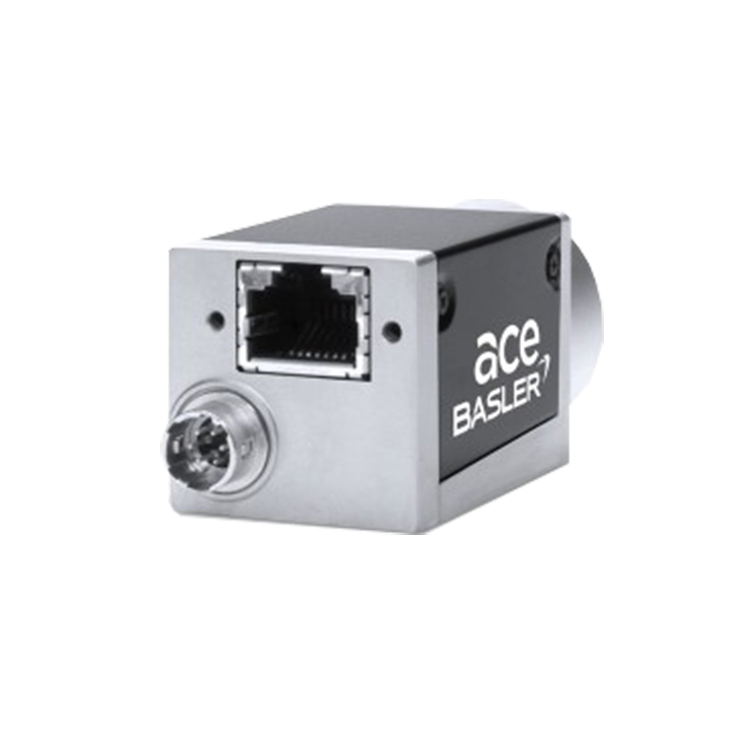

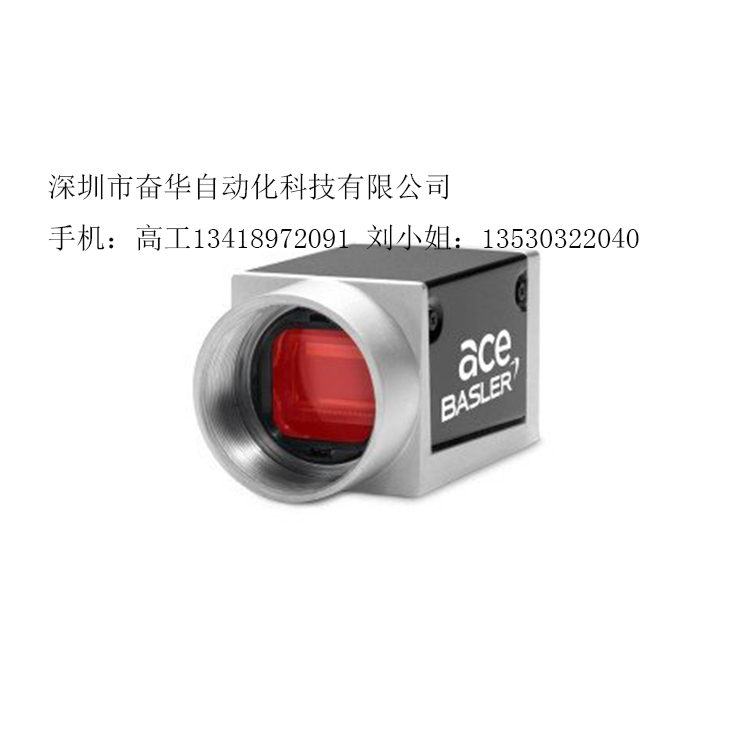

acA1300-22gc

The acA1300-22gc Basler ace GigE camera with a Sony ICX445 color CCD sensor delivers 22 frames per second at 1.3 MP resolution.


General Specifications

SpecificationacA1300-22gc

Resolution
(H x V Pixels)

1294 x  964

Sensor Type

Sony ICX445AQ

Progressive scan CCD

Global shutter

Optical Size

1/3"

Effective Sensor Diagonal

6.1 mm

Pixel Size (H x V)

3.75 μm x 3.75 μm

Frame Rate

(at Default Settings)

22 fps

Product Line

ace classic

Mono / Color

Color

Image Data Interface

Fast Ethernet (100 Mbit/s)

Gigabit Ethernet (1000 Mbit/s)

Pixel Formats

See Pixel Format.

Synchronization

Via hardware trigger

Via software trigger

Via free run

Exposure Time Control

Via hardware trigger

Programmable via the camera API

Camera Power Requirements

Power over Ethernet (PoE) 802.3af compliant supplied via Ethernet connector

12 VDC supplied via I/O connector

≈2.7 W when using Power over Ethernet

≈2.5 W @ 12 VDC when supplied via I/O connector

Note: When using extremely small AOIs, power consumption may increase to 2.9 W.

I/O Lines

1 opto-coupled input line

1 opto-coupled output line

Lens Mount

CS-mount

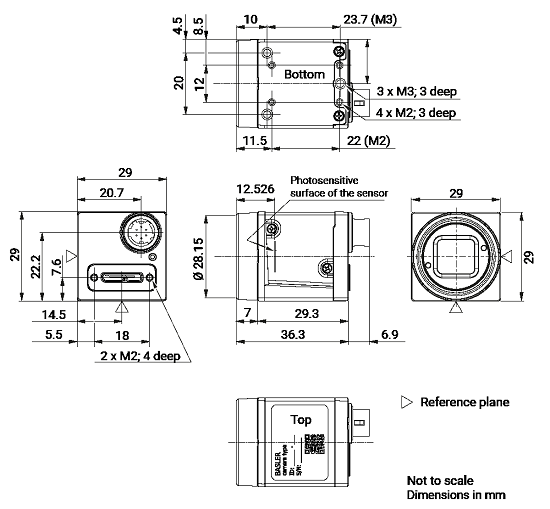

Size (L x W x H)

42.0 mm x 29 mm x 29 mm (without lens mount or connectors)

60.3 mm x 29 mm x 29 mm (with lens mount and connectors)

Weight

<90 g

Conformity

CE (includes RoHS), UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH

The EU Declaration of Conformity is available on the Basler website

Software

Basler pylon Camera Software Suite (version 4.0 or higher)

Available for Windows, Linux x86, Linux ARM, and OS X

Accessories

Cables for your camera model

Lenses for your camera model

Additional accessories for your camera model


Basler acA1300-22gc


Basler acA1300-22gc


Basler acA1300-22gc


Basler acA1300-22gc
