General Information
Discontinuation:
limited availability for orders after 01/2020
Order Number
104971
Price
For pricing, please use the request cart to get a quote.
Shipment
For information about shipping please use the request cart.
Sensor
Sensor Vendor
ON Semiconductor
KAI-1020
Shutter
Global Shutter
Max. Image Circle
2/3"
Sensor Type
CCD
Sensor Size
7.4 mm x 7.4 mm
Resolution (HxV)
1000 px x 1000 px
Resolution
1 MP
Pixel Size (H x V)
7.4 µm x 7.4 µm
Frame Rate
60 fps
Mono/Color
Color
Camera Data
Interface
GigE
Pixel Bit Depth
12 bits
Synchronization
§ software trigger
§ hardware trigger
§ free-run
Exposure Control
§ programmable via the camera API
Digital Input
2
Digital Output
4
Power Requirements
§ 12-24 VDC
Power Consumption (typical)
4.6 W
Housing
Housing Type
Box

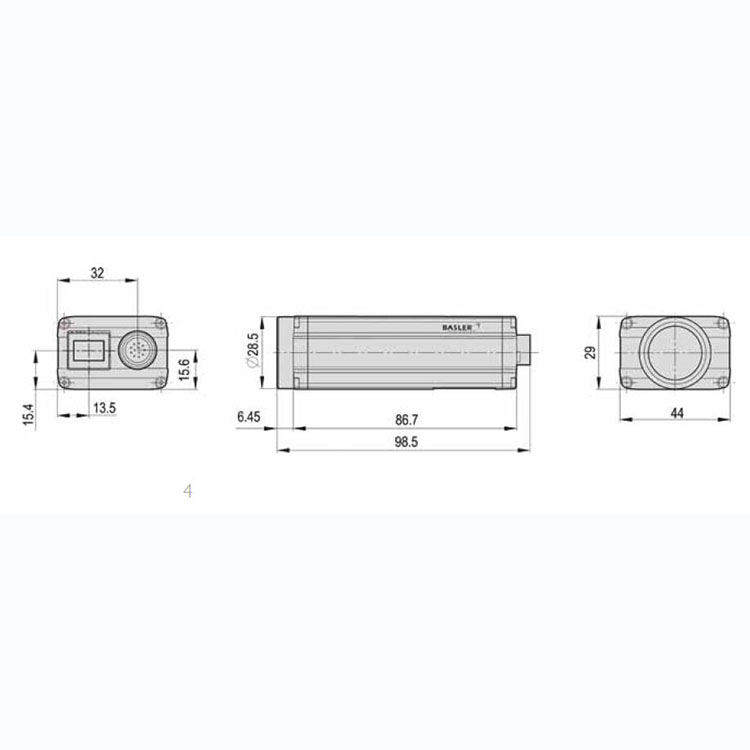

Housing Size (L x W x H)
86.7 mm x 44 mm x 29 mm
Lens Mount
§ C-mount
Operating Temperature
0 - 50°C
Weight (typical)
220g
Conformity
§ CE
§ GenICam
§ GigE Vision
§ IP30
§ FCC
§ KC
