Mako G-032B/C

· AVT Mako G-032B/C性能参数

GigE camera with Sony ICX424 CCD sensor, 102.3 fps

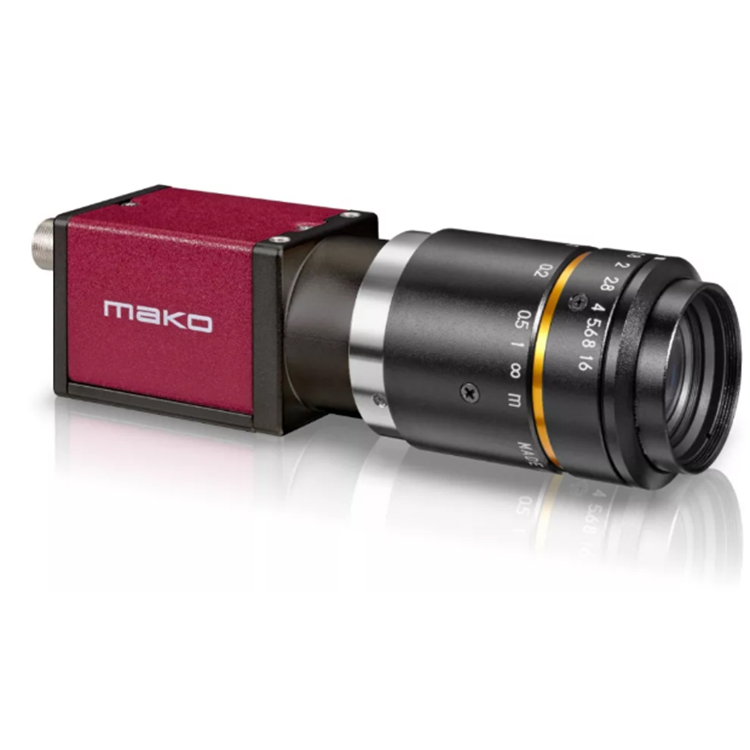

Mako G-032 is a 0.3 megapixel GigE machine vision camera that incorporates the high quality Type 1/3 (6.0 mm diagonal) Sony ICX424 CCD sensor with HAD technology. At full resolution, this camera runs 102.3 frames per second. With a smaller region of interest, higher frame rates are possible.

Mako G cameras have the same ultra-compact form factor and the same mounting positions as many analog cameras. All models include Power over Ethernet (PoE), three opto-isolated outputs, and a 64 MB image buffer. The image quality profits from the precisely aligned sensor. By default monochrome models ship with no optical filter and color models ship with IRC Hoya C-5000 IR cut filter.

Benefits and features:

· Monochrome (G-032B) and color (G-032C) models

· GigE Vision interface with Power over Ethernet

· Screw mount RJ45 Ethernet connector for secure operation in industrial environments

· Supports cable lengths up to 100 meters (CAT-5e or CAT-6)

· Comprehensive I/O functionality for simplified system integration

· Popular C-Mount lens mount

· Easy camera mounting via standard M3 threads on top and bottom of housing or optional tripod adapter

· Easy software integration with Allied Vision's Vimba SDK and compatibility to the most popular third party image-processing libraries.

· Available with protection glass, IR cut filter, or IR pass filter

See the Modular Concept for lens mount and optical filter options.

接口

IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)

分辨率

658 (H) × 492 (V)

传感器

Sony ICX424

传感器类型

CCD Progressive

传感器尺寸

Type 1/3

像元尺寸

7.4 µm × 7.4 µm

Shutter mode

Global shutter

Lens mounts (available)

C-Mount, CS-Mount, M12-Mount

最大满帧帧率

102.3 fps

ADC

14 Bit

缓存 (RAM)

64 MByte

非易失性内存 (Flash)

1024 KByte (for selected models only)

成像性能

成像性能数据是基于欧洲机器视觉协会（EMVA）1288发布的3.1版图像传感器和像机特征描述标准中的评估方法。测量值是在没有光学滤波片的全分辨率下，测量单色模型的典型值。请联系销售或工程师了解更多信息。

在波长为529nm下，量子转换效率

50 %

暗噪声

14.7 eˉ

饱和电子数

17800 eˉ

动态范围

61.4 dB

绝对灵敏度阈值

15.2 eˉ

输出

Bit位数

8/12 Bit

黑白像素格式

Mono8, Mono12, Mono12Packed

原始像素格式

BayerRG8, BayerRG12, BayerRG12Packed

通用输入输出口(GPIOs)

光耦 I/Os

1 input, 3 outputs

工作条件/尺寸

工作温度

+5 °C to +45 °C housing temperature

电源要求 (DC)

12 to 24 VDC AUX or 802.3at Type 1 PoE

功耗

2.4 W at 12 VDC; 2.8 W PoE

重量

80 g (with C-Mount)

尺寸 (L × W × H in mm)

60.5 × 29.2 × 29.2 (incl. connectors)

符合规范

CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class B; CAN ICES-003
