Versatile USB camera with IMX265 sensor
Alvium USB cameras are designed for use in both machine vision and embedded applications.
Offering high image quality and reducing workload for the host, Alvium enables innovation
among system designers. The innovative ALVIUM System on Chip (SoC) performs image
corrections and preprocessing tasks onboard the camera instead of the host computer. Unlike
FPGAs commonly used in machine vision cameras, the ALVIUM SoC is extremely power efficient.
With Alvium, integrating hardware and software can be done effortlessly, which ultimately
reduces development time. The Sony IMX265 CMOS sensor enables imaging at 3.2 megapixel and
53 frames per second. Color models ship with an IR cut filter, monochrome and S-Mount models
ship without a filter or protection glass.
• Monochrome (1800 U-319m) and color (1800 U-319c) models
• ALVIUM® Technology for on-board image processing
• USB3 Vision interface for GenICam SFNC features
• Platform concept that enables the operation of different Alvium camera models with a
• Micro-B USB 3.1 Gen 1 connector with screw locks for industrial applications
• Precise sensor-to-lens mount alignment
• Standard M3 mounting holes for top and bottom mounting, standard M2 mounting holes for
• Industrial performance for both embedded and machine vision applicationsHardware options

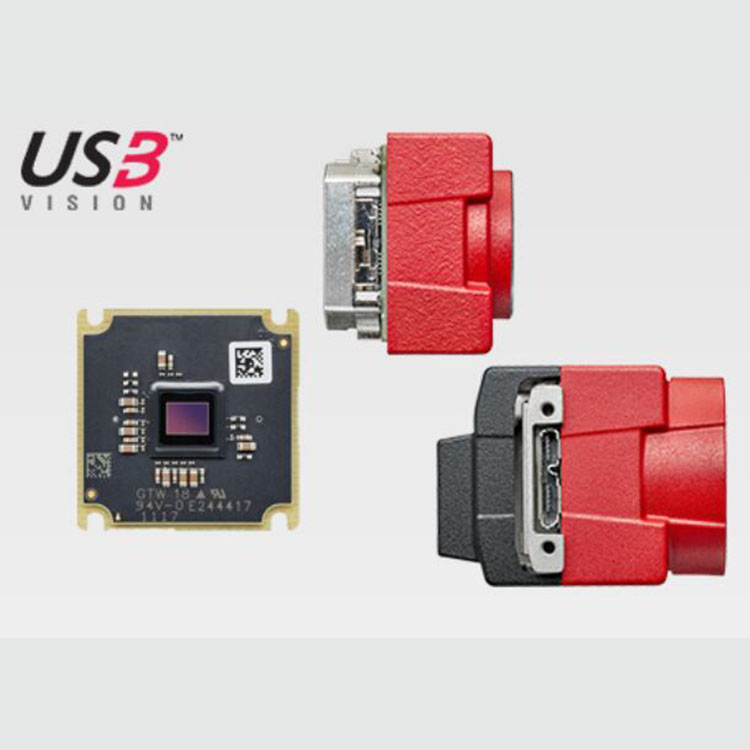

• Housings: Bare board, open housing, or closed housing

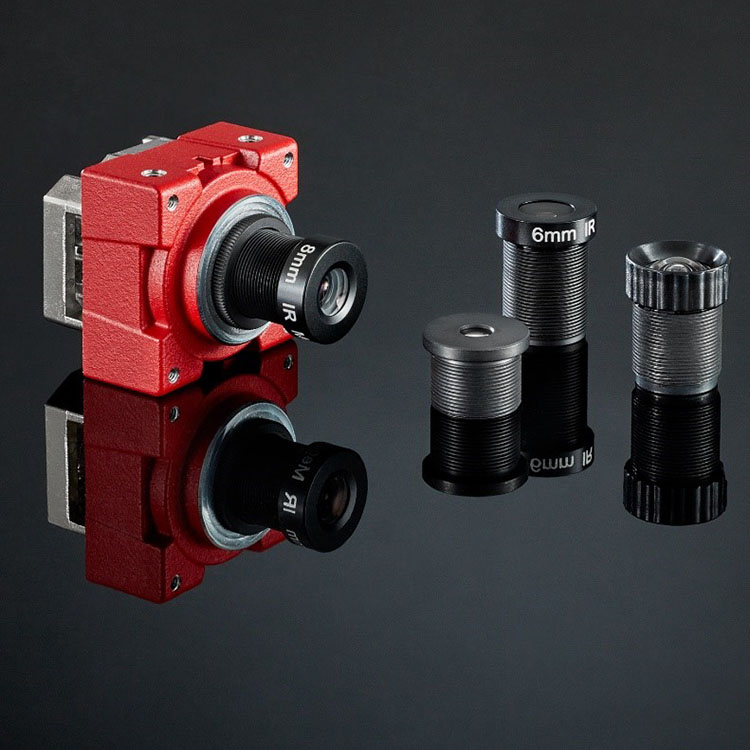

• Various lens mounts: C-Mount, CS-Mount, or S-Mount
• USB connector position: Select between the back panel or the left side of the camera (seen
For more information on hardware options, including product codes and technical data, such as
technical drawings and mass, see the Alvium Cameras Hardware Options document.
• USB 3.1 Gen 1 cable with screw connectors in various lengths
• I/O cables in various lengths
• Various lenses and Allied Vision S-Mount lenses with focal lengths 2.97 - 12 mm
Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1
standard for characterization of image sensors and cameras. Measurements are typical values for
monochrome models measured without optical filter.
Mono8, Mono10, Mono12, Mono12p
YCbCr411_8_CbYYCrYY, YCbCr422_8_CbYCrY,
BayerGR8, BayerGR10, BayerGR10p, BayerRG12,
+5 °C to +65 °C housing temperature
Power over USB 3.1 Gen 1 | External power 5.0
USB power: 2.2 W (typical) | Ext. power: 2.4 W
13 × 26 × 26 (bare board, standard), 13 × 30 ×
2011/65/EU, including amendment 2015/863/EU
