1800 U -1236

您的当前位置：首页 >> 产品中心 >> Alvium

1800 U -1236

1800 U -1236

所属分类：Alvium
型号：Alvium 1800 U -1236
点击次数：
发布日期：2020/04/06
在线询价

详细介绍

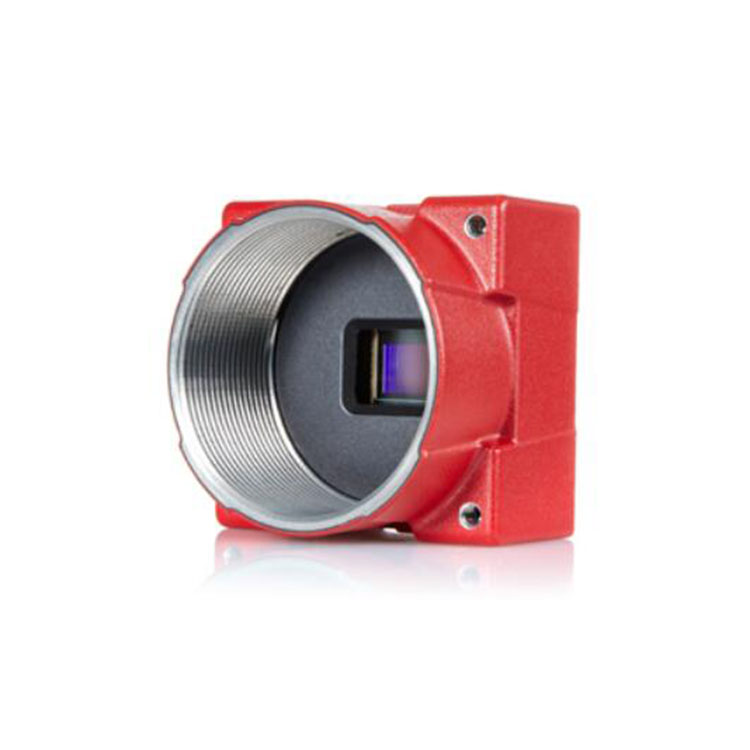

ALVIUM 1800 U-1236

· IMX304 CMOS sensor

· ALVIUM image processing

· Various hardware options

Versatile USB camera with IMX304 sensor

Alvium USB cameras are designed for use in both machine vision and embedded applications. Offering high image quality and reducing workload for the host, Alvium enables innovation among system designers. The innovative ALVIUM System on Chip (SoC) performs image corrections and preprocessing tasks onboard the camera instead of the host computer. Unlike FPGAs commonly used in machine vision cameras, the ALVIUM SoC is extremely power efficient. With Alvium, integrating hardware and software can be done effortlessly, which ultimately reduces development time. The Sony IMX304 CMOS sensor enables imaging at 12.4 megapixel and 22 frames per second. Color models ship with an IR cut filter, monochrome models ship without a filter or protection glass.

Benefits and features

· Monochrome (1800 U-1236m) and color (1800 U-1236c) models

· ALVIUM® Technology for on-board image processing

· USB3 Vision interface for GenICam SFNC features

· Platform concept that enables the operation of different Alvium camera models with a common software

· Micro-B USB 3.1 Gen 1 connector with screw locks for industrial applications

· Precise sensor-to-lens mount alignment

· Standard M3 mounting holes for top and bottom mounting, standard M2 mounting holes for front mounting

· Industrial performance for both embedded and machine vision applications

Hardware options

· Housings: Bare board, open housing, or closed housing

· Various lens mount: C-Mount

· USB connector position: Select between the back panel or the left side of the camera (seen from the sensor side).

For more information on hardware options, including product codes and technical data, such as technical drawings and mass, see the Alvium Cameras Hardware Options document.

Available accessories

· Tripod adapter

· USB 3.1 Gen 1 cable with screw connectors in various lengths

· I/O cables in various lengths

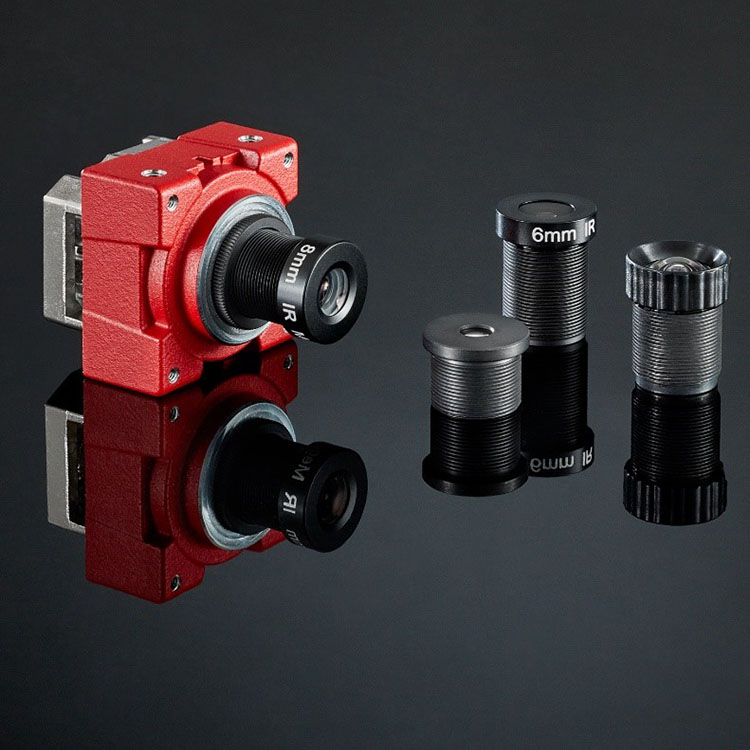

· Various lenses

4112 (H) × 3008 (V)

传感器类型

传感器尺寸

3.45 µm × 3.45 µm

Type Hoya C5000 IR cut filter

最大满帧帧率

22 fps at ≥300 MByte/s, Mono8

非易失性内存 (Flash)

成像性能

Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured without optical filter.

在波长为529nm下，量子转换效率

饱和电子数

绝对灵敏度阈值

黑白像素格式

Mono8, Mono10, Mono12, Mono12p

YUV彩色像素格式

YCbCr411_8_CbYYCrYY, YCbCr422_8_CbYCrY, YCbCr8_CbYCr

RGB彩色像素格式

BayerGR8, BayerGR10, BayerGR10p, BayerRG12, BayerRG12p, BGR8, RGB8

通用输入输出口(GPIOs)

4 programmable GPIOs

工作条件/尺寸

+5 °C to +65 °C (housing)

电源要求 (DC)

Power over USB 3.1 Gen 1 | External power 5.0 V

USB power: 2.9 W (typical) | Ext. power: 3.1 W (typical)

尺寸 (L × W × H in mm)

2014/30/EU; 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B digital device; CAN ICES-003 (B) / NMB-3 (B)
