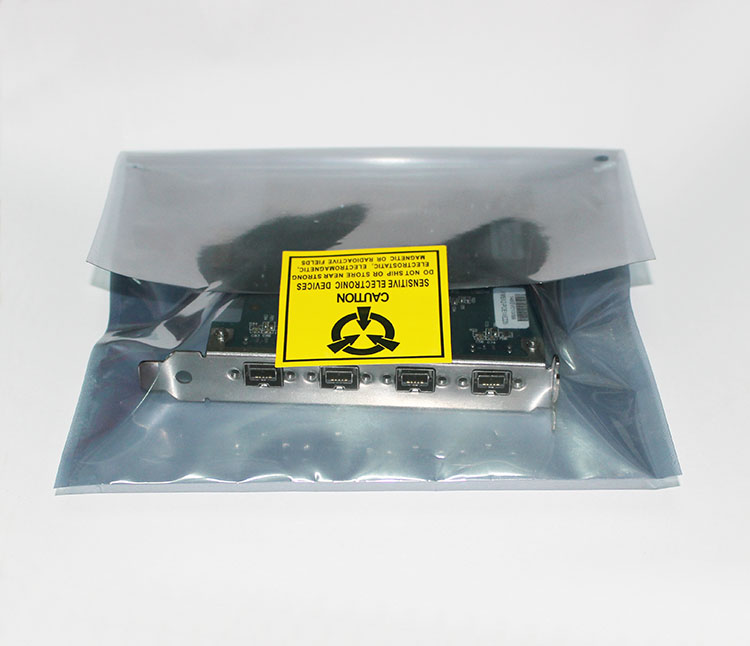

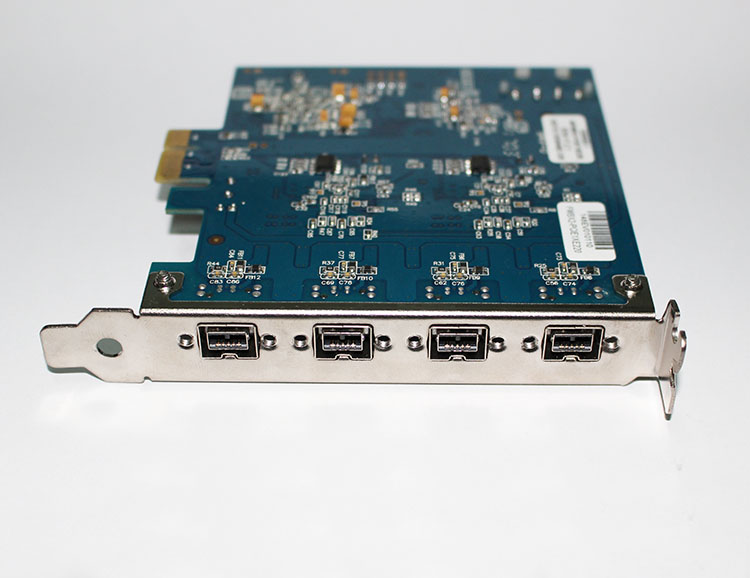

台湾IOI采集卡4路FWBX2-PCIE1XE220 1394 B采集卡

FWBX2-PCIE1XE220

台湾IOI采集卡

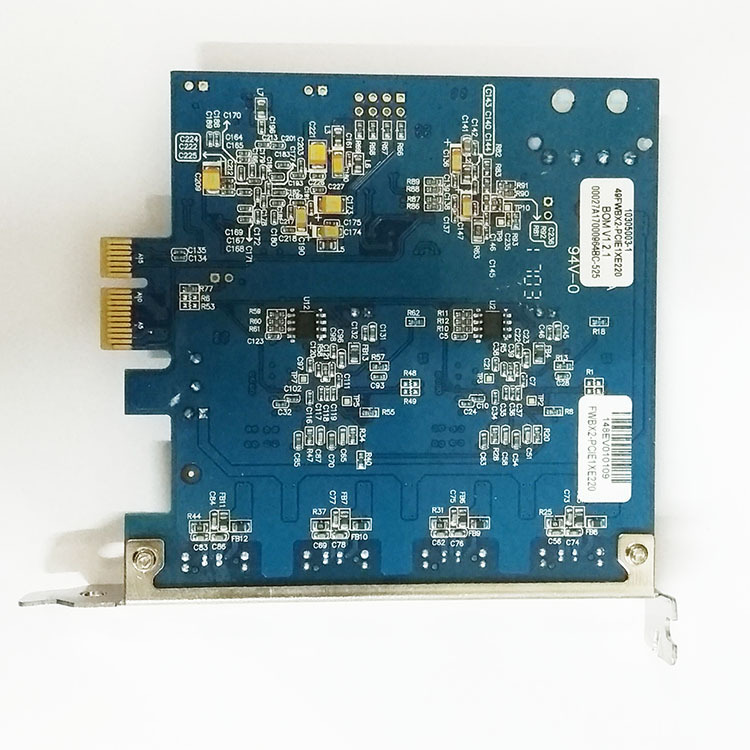

台湾IOI FWBX2-PCIE1XE220图像4路采集卡LSI FW643 1394B视觉全新现货

台湾IOI 1394B 800M采集卡FWBX4-PCIE4XE120

4路1394B接口PCI-E4X，4路实时

Host Adapters

FWBX4-PCIE4XE120

Quad OHCI IEEE 1394b (Firewire 800) to PCI Express x4 Gen2 Host Card

Highlights

Host Bus: PCIe x4 (4-lane) Gen2 (20 Gb/s)
Quad OHCI 1.2 Compliant IEEE 1394b host controllers
Designed with Late VG Protection
Four independent external Bilingual IEEE Std 1394b-2002 Cable Ports
o Supports Bilingual Plug port with Jackscrew Type 1394b Cable

Introduction

The FWBX4-PCIE4XE120 is a Quad OHCI IEEE 1394b (Firewire 800) to PCI Express x4 Gen2 Host Card.

FWBX4-PCIE4XE120 is designed with two key components.

8-Lane, 8-Port PCI Express Switch.
OHCI 1.2 Compliant IEEE 1394b Single Chip Host Controller (4pcs).

MultipleVCs (Virtual Channels) on the PCI Express link provide native support for QoS (Quality of Service) transmission for real-time and multimedia applications in a standards-based framework, ensuring compatibility with current and future operating systems. Active-state power management allows dynamic power management during periods of reduced network activity.

Technical Specifications

PCI Express:Standards complianto PCI Express Base Specification, Revision 2.0 (PCI Express Base r2.0)o PCI Express Base Specification, Revision 2.0 Erratao Backward-compatible with the PCI Express Base Specification, Revision 1.1 (PCI Express Base r1.1) and PCI Express Base Specification, Revision 1.0a (PCI Express Base r1.0a)o PCI Bus Power Management Interface Specification, Revision 1.2 (PCI Power Mgmt. r1.2)o Microsoft Vista®-complianto Supports Access Control Serviceso Dynamic Link-width controlo Dynamic SerDes speed controlNote: Additional specifications, with which this product complies, are listed in Supplemental Documentation.High Performanceo Non-Blocking Internal architectureo Full line rate on all Portso Cut-Thru latency – 190 ns for Link widths of x4 to x1o Maximum payload size set to 256 or 128performancePAKTMo Read PacingTM (intelligent bandwidth allocation)o Dual CastTMo Dynamic Buffer Pool Architecture for faster credit updatesPCI Express Power Managemento Conventional PCI-compatible Link Power Management states – L0, L0s, L1, L2/L3 Ready,and L3 (with Vaux not supported)o Conventional PCI-compatible Device Power Management states – D0 and D3hoto Active State Power Management (ASPM)Quality of Service (QoS) supporto Two Virtual Channels (VC0 and VC1) per Porto Eight Traffic Classes (TC[7:0]) per Porto Weighted Round-Robin (WRR) Port and Virtual Channel (VC) arbitrationOHCI (Open Host Controller Interface)Enhanced with the OHCI 1.2 draft specification for 1394b-2002 PHY full operational compliance.OHCI 1.0 backwards compatible. Configurable via EEPROM to operate in either OHCI 1.0 or OHCI 1.1 mode.8 Kbyte isochronous transmit FIFO.4 Kbyte asynchronous transmit FIFO.8 Kbyte isochronous receive FIFO.8 Kbyte asynchronous receive FIFO.Dedicated asynchronous and isochronous descriptor-based DMA engines.Eight isochronous transmit contexts.Eight isochronous receive contexts.Supports parallel processing of incoming physical read and write requests.Supports up to 48-bit addressing per OHCI specification for the physical DMA transfers.1394b-2002 LinkSupport for calculation and checking of the cyclic redundancy check (CRC) on outgoing and incoming packetsSupport for decoding the destination ID of incoming 1394 packets to determine if an acknowledge is needed.Cycle master and isochronous resource manager capabilitySupport for 1394a-2000 and 1394b acceleration features1394b-2002 PHYIEEE 1394b-2002 compliant ports supporting 1394b speeds of 800 Mb/s and 400 Mb/s while maintaining backward compatibility to IEEE 1394a-2000 speeds of 100 Mb/s, 200 Mb/s, and 400 Mb/s over 4.5 m copper.Full support for IEEE 1394a-2000 and 1394-1995 standard provisions for high-performance serial bus.Registers to indicate power class modes.Extended BIAS_HANDSHAKE time for enhanced interoperability with camcorders.While unpowered and connected to the bus, the device does not drive TPBIAS on a connected port even if receiving incoming bias voltage on that port.No need for an external filter capacitor for PLL.Link-on as a part of the internal PHY core-link interface.Arbitrated short bus reset.Ack-accelerated arbitration and fly-by concatenation.Connection debounce.Multispeed packet concatenation.PHY pinging and remote PHY access packets.Port disable/suspend/resume.PHY-link interface initialization and reset.Support for the 1394a-2000 register set.Fully interoperable with FireWire® and i.LINK® implementation of IEEE 1394-1995.Cable power fail interrupt reported when voltage at TPCPS pin falls below 7.5 V.Separate cable bias and driver termination voltage supply for each port provided.Number of Ports:Four External Bilingual ports with Screw Holes for thumbscrew locking Type 1394b Cableo OHCI 4: One 1394b Bilingual porto OHCI 3: One 1394b Bilingual porto OHCI 2: One 1394b Bilingual porto OHCI 1: One 1394b Bilingual portBus Power Connector:Either Big IDE 4-pin DC Power Connector or/and SATA 15pin Power Connector
